Precisely positioned

Adjusting strokes accurately takes time and experienced employees. If it has to be fast and accurate, the LDM 400 (= length stop de Man) offers the perfect solution. The automatic positioning system enables precise and fast processing of long goods on stationary machines. The LDM 400 can be installed on almost any machine, regardless of whether it is drilling, milling or sawing. Special feature: The length stop can also be positioned between two machines as version "Z" and operate both!

The high-precision system is easy and intuitive to operate directly via the touch screen monitor on the machine. Alternatively, the LDM 400 can transfer data from industry software. The positioning drive moves at a speed of 1m/sec. exactly to the previously entered desired dimension and the machining process can be started directly. The LDM 400 increases machining quality while significantly minimizing machining time. With regular loading, the system pays for itself within a short time.

The length stop LDM 400 can be easily coupled to the existing machines and adjusted. It has been specially developed for the subsequent expansion of • saws • drilling machines • milling machines • cross-cut saws

LDM 400: the guarantee for consistently high processing quality – always accurate to the tenth of a millimeter!

> Download datasheet

We are happy to advise you free of charge and without obligation: 05425/9497-0!

length stop LDM

The advantages at a glance:

- Complete, automatic positioning system
- High-precision positioning axis with rack
- Fully assembled, ready for immediate use
- Positioning control: simple dimension input and processing of cutting lists via touch screen
- Menu-driven operation
- Network-compatible control with Windows operating system
- Steuerung All-In-One Touch PC

LDM picture 2

The data at a glance:

- Repeatability ± 0.1 mm
- Measuring range 10 to 9,700 mm
- Travel speed: approx. 1m/sec.
- Support width: 400 mm (on request also 200 mm possible)
- Support length: 1,000 mm to 10,000 mm

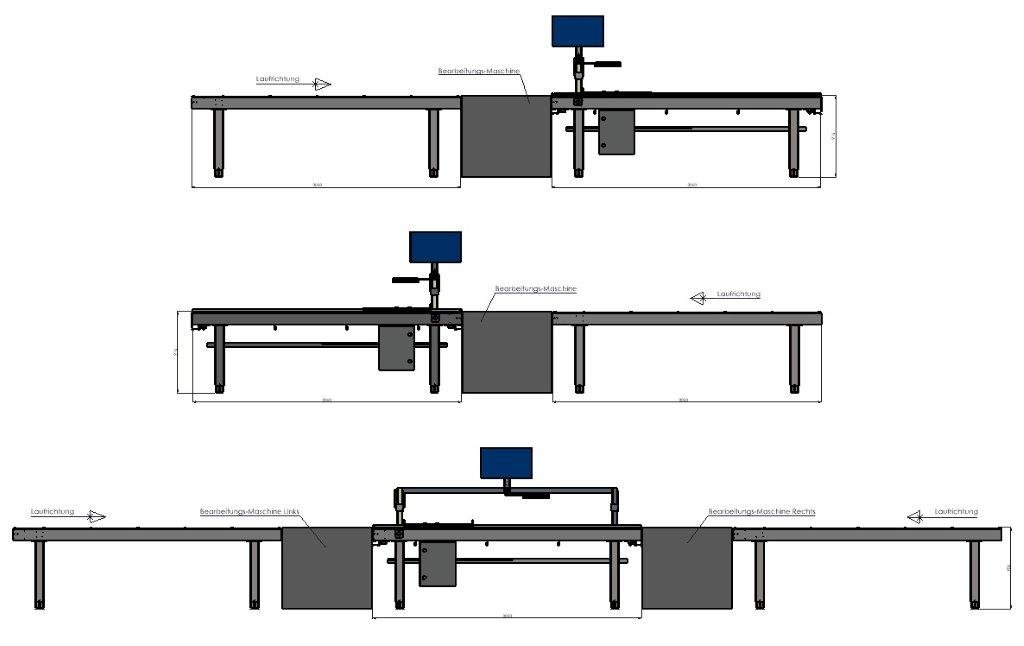

- Installation: to the right or left of the processing machine or between two machines
